Name: 200W Explosion-Proof LED High Bay Light – 22,000lm, ATEX Zone 1/21, IP66 Rated for Hazardous Areas
Brand: crown extra lighting co. ltd
SKU: GYD830
Price: 138.00 USD
Availability: InStock

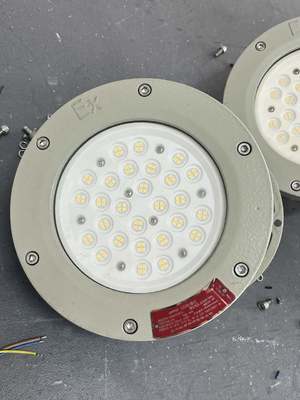

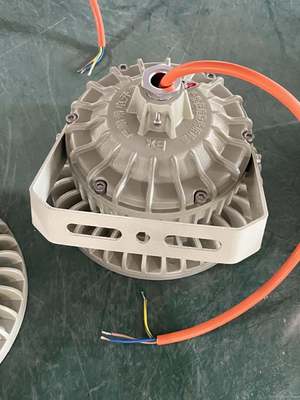

200W Explosion-Proof LED High Bay Light – 22,000lm, ATEX Zone 1/21, IP66 Rated for Hazardous Areas

বড় ইমেজ : 200W Explosion-Proof LED High Bay Light – 22,000lm, ATEX Zone 1/21, IP66 Rated for Hazardous Areas

পণ্যের বিবরণ:

Place of Origin:	CHINA
পরিচিতিমুলক নাম:	CROWN EXTRA
সাক্ষ্যদান:	IECEX,ATEX,CE,CNEX,ISO,RoHS
Model Number:	GYD830

প্রদান:

Minimum Order Quantity:	1 SET
মূল্য:	negotiate
Packaging Details:	1SET/CTN
Delivery Time:	5-7 work days
Payment Terms:	T/T, Western Union
Supply Ability:	10000 Per Month

যোগাযোগ

200W Explosion-Proof LED High Bay Light – 22,000lm, ATEX Zone 1/21, IP66 Rated for Hazardous Areas

বিবরণ

Features:

Shell made of high strength aluminum alloy casting off surface after blast cleaning by high voltage electrostatic spray.
Lamp housing is made of high borosilicate toughened glass with transmittance.It's the antiglare design.
With grids to adjust lighting effect and reduce the glare.
Environmental-friendly and energy saving, simple shape, easy installation
For fitting with emergency unit, It will automatically turn to emergency lighting when power circuit failed.
Inside the emergency unit designed with over charging and over discharging protection circuit.
Screw connection type, for easy installation and maintenance.
Power factor can be over 0.95.
Steel conduit or cable wirings.

Application:

Suitable for explosive gas environment Zone1, Zone2.

Suitable for Hazarous dust area: Zone21, Zone22.

Can be used in the environment of temperature group for T1~T6.

Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.

Verious types terminals for options.

Specification:

Electrical data
Rated voltage	100-240VAC, 50-60Hz
Power factor	>0.95
THD	<20%
Luminous characteristics
Power consumption [W]	20～70	80-100	100-150
Colour rendering [CRI]	70 (±2)
Colour temperature [K]	5700-6500
Luminaire efficiency [Lm/W]	115-135
Beam angle	120° (60°, 90° is optional)
Mechanical data
Degree of protection	IP66
Cable entry	G 3/4”
Weight [kg]	4.8	6.4	8.8	/
Terminal	≤2.5 mm²
Mounting Styles	Ceiling; Wall Bracket; Pendant: Flange; Flat

Company introduction:

Crown Extra Lighting Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
The company is located in Changzhou, known as the "Dragon City" in the Yangtze River
Delta of China. The company is committed to becoming a provider of green, environmentally friendly,
energy-saving, and leading industrial lighting solutions, providing high-quality lighting products for
petroleum, petrochemical, electric power, metallurgy, railways, aerospace, military, public security,
fire fighting, ships, roads, pharmaceuticals, etc. And professional technical service programs.
